5 Haziran 2018 Salı

How to configure “Cisco C- 2960-X”

Cisco C- 2960-X_Switch Configuration

How to configure “Cisco C- 2960-X”


You can use both LAN and Serial connection to login device.


(Test Network)Cisco Manageable Switch Access(Serial) Information
Serial Port= Com 1
Baudrate=9600


1. Login device with use putty.
Serial Port= Com 1
Baudrate=9600

2. Switch to privileged mode with enable command
Yazilim_Test_SW#enable

3. Switch to configuration mode with 'configure terminal' command
Yazilim_Test_SW#configure t

4. Switch to interface configuration mode enter the interface command

Yazilim_Test_SW(config)#interface gigabitEthernet 1/0/13

Yazilim_Test_SW(config-if)#switchport access vlan 706

Yazilim_Test_SW(config-if)#interface gigabitEthernet 1/0/14

Yazilim_Test_SW(config-if)#switchport access vlan 706

Yazilim_Test_SW(config-if)#interface gigabitEthernet 1/0/15

Yazilim_Test_SW(config-if)#switchport access vlan 706

6.Save your entries in the configuration file.
Yazilim_Test_SW(config-if)#copy running-config startup-config

4 Haziran 2018 Pazartesi

How to configure Cisco AIR-AP1242 AG-E-K9 MA

                          How to configure Cisco AIR-AP1242 AG-E-K9 MA


1. Login with putty serial configuration



2. Switch to privileged mode with enable command
3. Switch to configuration mode with 'configure terminal' command

   a) set profile
   ap(config)#dot11 ssid Test
   authentication open
   guest-mode
   authentication key-management wpa version 2
   wpa-psk ascii 123456789


3. set interface
   a) Set Ciphers
   ap(config)#interface dot11Radio 0
   encryption mode ciphers aes-ccm tkip
   ssid Test
   no shutdown
   end
4. backup our configuration with:

ap#copy running-config startup-config





5. for reset type:
write erase
reload



How to install Apache Jmeter on Ubuntu

Before installing JMeter it is essential to check the presence of Java in your machine as JMeter is a Java based application. If it isn't installed, use the following command to do the same.

How to Install Java 8 on Debian
Oracle Java 8 required by some programs and it is not available on Debian archive due to licensing issues.
To install Java 8 on Debian Jessie with minimum effort, you can use WebUpd8’s Java PPA repositories. Follow the steps below:

First,
update the package index.

root@dhcpserver:~# apt-get update

Next,
To ensure that we get the correct source line on Debian,

:~# vi /etc/apt/sources.list.d/java-8-debian.list

we’ll need to modifies the following command line:

deb http://ppa.launchpad.net/webupd8team/java/ubuntu trusty main
deb-src http://ppa.launchpad.net/webupd8team/java/ubuntu trusty main

Save and exit the file.

root@dhcpserver:~# apt-key adv --keyserver keyserver.ubuntu.com --recv-keys EEA14886

This should display something like this:

Executing: gpg --ignore-time-conflict --no-options --no-default-keyring --homedir /tmp/tmp.2xygQ4W97k --no-auto-check-trustdb --trust-model always --keyring /etc/apt/trusted.gpg --primary-keyring /etc/apt/trusted.gpg --keyring /etc/apt/trus

Update the package index.

root@dhcpserver:~# apt-get update

This should display something like this:
Ign http://ftp.tr.debian.org jessie InRelease
Get:1 http://ppa.launchpad.net trusty InRelease [15.5 kB]

To install JDK 9, use the following command:

root@dhcpserver:~# apt-get install oracle-java8-installer

This should display something like this:
Reading package lists... Done
Building dependency tree
Reading state information... Done

After installation, you can check the java version:

root@dhcpserver:~# java -version

This should display something like this:

java version "1.8.0_161"
Java(TM) SE Runtime Environment (build 1.8.0_161-b12)


Installing Jmeter

Once Java is installed, restart the Apache serveice as follows:

root@dhcpserver:~# service apache2 restart

The next thing to do is to update your apt source. Use the following command for the same


root@dhcpserver:~# apt-get update

Navigate https://archive.apache.org/dist/jmeter/binaries/ and download the Apache JMeter (3.2 version or others)

The latest  version of Apache JMeter is required. Use the wget command to download it.

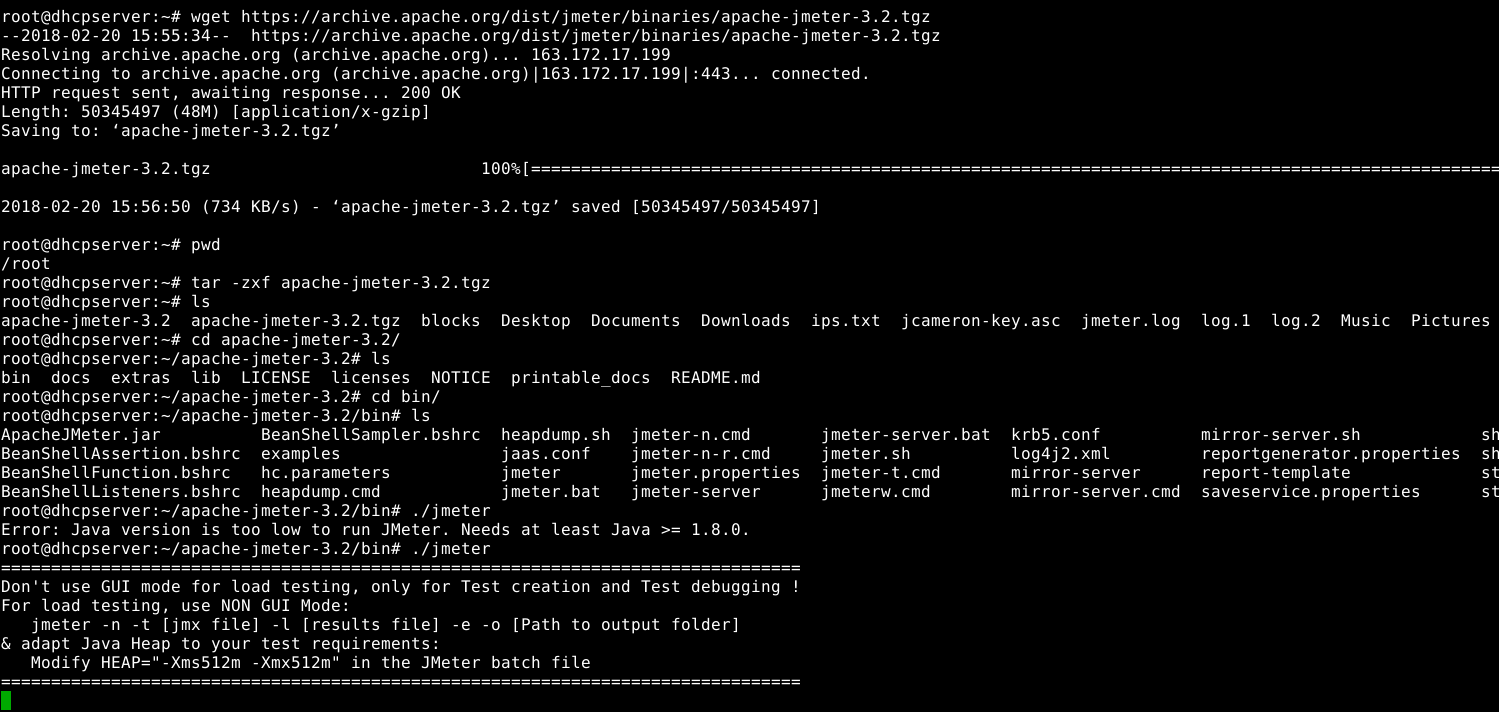

root@linuxhelp:~# wget -c https://archive.apache.org/dist/jmeter/binaries/apache-jmeter-3.1.tgz

Once the download is done, extract the downloaded file by using tar command.

root@dhcpserver:~# tar -zxf apache-jmeter-3.2.tgz

Move to JMeter bin directory

root@dhcpserver:~# cd apache-jmeter-3.1/bin/

And list the files for checking the JMeter files.

You can start the Apache JMeter application by using the following command.




Now you can use Apache JMeter.
